Raspberry Pi: Comparing HDD Disk Read and Write Performance for external USB and SATA Drives
In my IOT Stack, a Raspberry Pi with an external connected disk serves as a SAMBA server. Before installing the system, I wanted to see the performance differences of various disk, their read speed, and their local and remote, via SAMBA, write speed.
This article briefly shows how to measure and improve the HDD performance of your server. You will learn the essential Linux commands to make disk performance measurements locally and over the network, and learn about the physical speed limits.
The technical context of this article is Raspberry Pi OS 2021-05-07. All instructions should work with other Linux distributions and newer versions as well.
Performance Measurements
For speed tests, the two essential tools are Hdparm and dd:
hdparmis a multifunctional tool for configuration and performance measurements, It will evaluate the disks read and write speed, as well as to access aspects like its power management capabilities and direct memory access configurationddis a command line tool for reading and writing raw device data, and can be used for tasks such as making backups of the boot sector or of the entire hard disk.
To test the drive performance with these tools, they will be called in a specific manner. With hdparm, we will test the device reads and cache reads performance - the command is hdparm -tT DEVICE_NAME. With dd, we will write 5GByte of data to the disk - the command is dd bs=10M count=500 if=/dev/zero of=PATH_TO_OUTPUT_FILE. With dd, we will both make a test for the disk’s local performance, and we will also write data to a SAMBA share to measure the network performance.
Measurement 1: 1TB USB3.0 External Disk
The fist disk is a Toshiba Canvio Basic 1TB USB3.0 external disk. It runs at 5400RPM.
Read Performance
sudo hdparm -tT /dev/sda
Timing cached reads: 1590 MB in 2.00 seconds = 795.37 MB/sec
Timing buffered disk reads: 256 MB in 3.03 seconds = 84.52 MB/sec
Local Write Performance

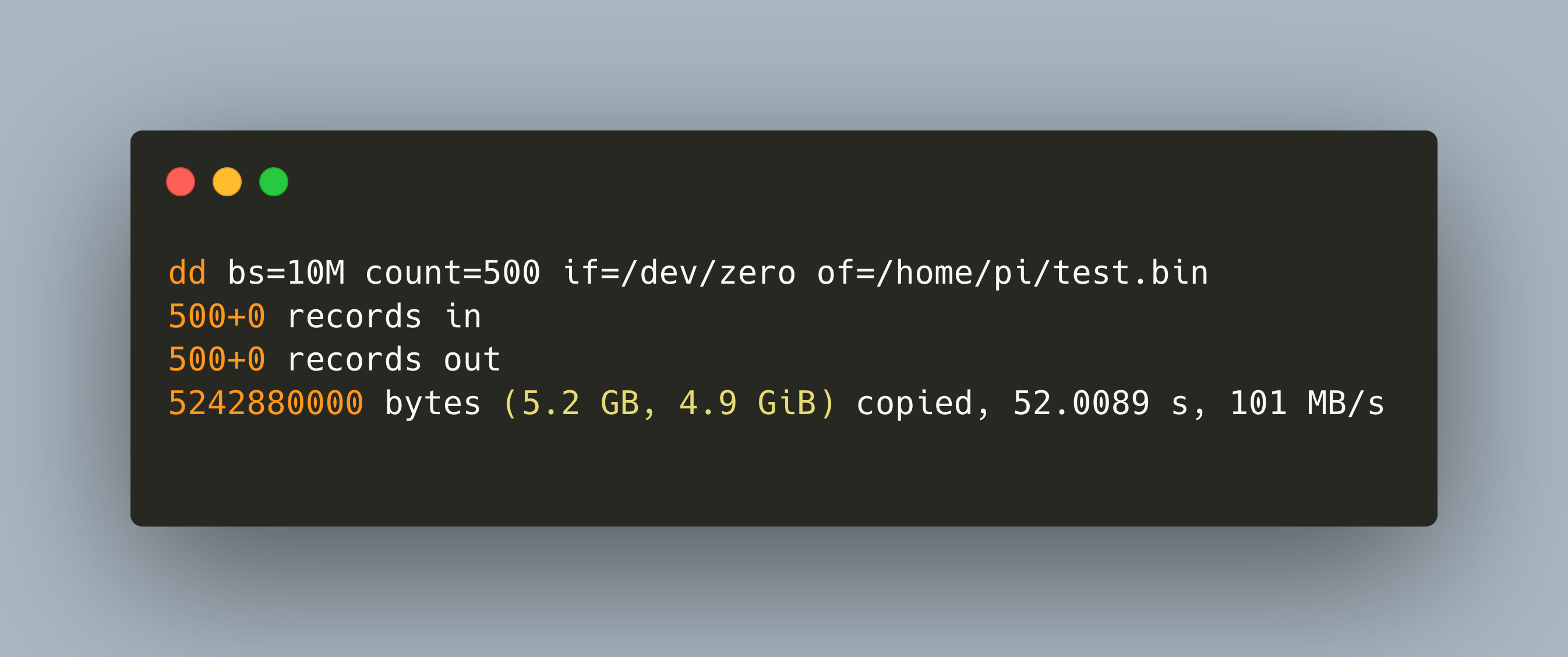

dd bs=10M count=500 if=/dev/zero of=/home/pi/test.bin
500+0 records in
500+0 records out
5242880000 bytes (5.2 GB, 4.9 GiB) copied, 52.0089 s, 101 MB/s
Remote Write Performance
dd bs=10M count=500 if=/dev/zero of=/Volumes/share/test.bin
500+0 records in
500+0 records out
5242880000 bytes transferred in 77.964918 secs (67246656 bytes/sec)
67MB/s
Measurement 2: 512GB 2.5' SATA with USB3.0 Connection
The second disk is and older disk from a laptop, a 512GB Western Digital 512GB SATA 5400 WD5000BEVT. Its connected with a SATA-To-USB connector attached to an USB3.0 port.
Read Performance
sudo hdparm -tT /dev/sda
/dev/sda:
Timing cached reads: 1544 MB in 2.00 seconds = 772.31 MB/sec
Timing buffered disk reads: 258 MB in 3.00 seconds = 85.89 MB/sec
Local Write Performance
dd bs=10M count=500 if=/dev/zero of=/home/pi/test.bin
500+0 records in
500+0 records out
5242880000 bytes (5.2 GB, 4.9 GiB) copied, 63.1331 s, 83.0 MB/s
Remote Write Performance
dd bs=10M count=500 if=/dev/zero of=/run/user/1000/gvfs/smb-share:server=nexus,share=share/testbin
500+0 records in
500+0 records out
5242880000 bytes (5,2 GB, 4,9 GiB) copied, 123,337 s, 42,5 MB/s
Measurement 3: 512GB 2.5' SATA with USB2.0 Connection
That’s the same disk as in measurement 2, but connected to an USB2.0 port on the Raspberry Pi.
Read Performance
sudo hdparm -tT /dev/sda
/dev/sda:
Timing cached reads: 1506 MB in 2.00 seconds = 753.58 MB/sec
Timing buffered disk reads: 98 MB in 3.01 seconds = 32.53 MB/sec
Local Write Performance
dd bs=10M count=500 if=/dev/zero of=/home/pi/test.bin
500+0 records in
500+0 records out
5242880000 bytes (5.2 GB, 4.9 GiB) copied, 174.322 s, 30.1 MB/s
Remote Write Performance
dd bs=10M count=500 if=/dev/zero of=/run/user/1000/gvfs/smb-share:server=nexus,share=share/testbin
^[[C500+0 records in
500+0 records out
5242880000 bytes (5,2 GB, 4,9 GiB) copied, 175,105 s, 29,9 MB/s
Comparison
Let’s compare all the measurements.
| Read | Write (local) | Write (Remote) | |
|---|---|---|---|
| 1TB USB3.0 Extern | 84 MB/s | 101 MB/s | 67 MB/s |
| 512GB SATA 5400RPM with USB2.0 Connection | 33 MB/s | 30 MB/s | 30 MB/s |
| 512GB SATA 5400RPM with USB3.0 Connection | 86 MB/s | 83 MB/s | 43 MB/s |
The clear winner is the native USB3.0 disc, although it runs at the same speed of 5400RPM, it increases the local write speed by 21% and the remote write speed by 55% compared the SATA disc.
Understanding Remote Write Performance Drop
Now, let’s see why the remote write performance drops by about 33%. The theoretically available speed limits are:
- USB 2.0 53MB/s
- USB 3.0 500MB/s
- SATA3 550MB/s
In my home network, I measured raw package data transfer speed of 924 MB/s.
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.00 sec 1.08 GBytes 924 Mbits/sec sender
[ 5] 0.00-10.01 sec 1.07 GBytes 922 Mbits/sec receiver
So, why can I only achieve 67 MB/s? Reading various threads about SAMBA network share with Raspberry Pi unveiled two facts: SAMBA adds significant network overhead, and even if a Gigabit ethernet is available, the bandwidth is shared by all connected devices. Having multiple Raspberry Pi connected and communicating with each other impacts the overall performance. To increase the performance, others are recommending to fine-tune the SAMBA settings of the software you are using, for example see this thread about improving SAMBA performance in OpenMediaVault.
